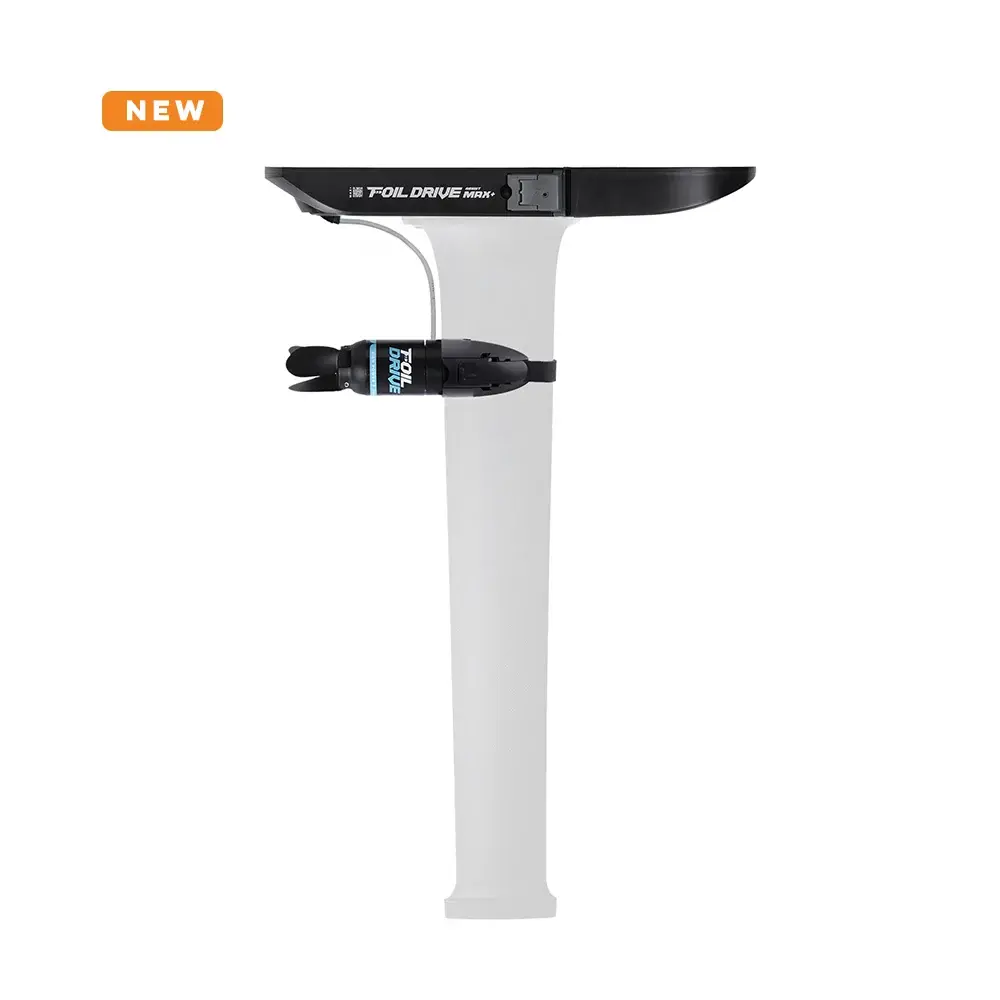

Foil Drive Assist MAX+ High Power kit
Komplett kit med:
Assist MAX+
MAX Power 650 Battery
Retro-fit High Power Motor Kit
Assist MAX+ bygger på Foil Drives 43V-arkitektur och har en slitstark batterikonstruktion i ett stycke. Samtidigt behåller systemet det kompakta, lätta och välbalanserade format som gjort den ursprungliga Assist MAX användbar för många olika typer av foiling.
Assist MAX+ kan användas i allt från små vågor till större surf, men även för wingfoil i lätt vind, downwind, wake, flatwater och e-foil. Den högre effekten och längre drifttiden ger större räckvidd och gör systemet användbart tillsammans med många befintliga foil-setup.
Resultatet är ett mångsidigt assistsystem som gör det enklare att komma ut på vattnet även när förhållandena inte är optimala och ger fler möjligheter att använda samma foilutrustning under olika typer av sessioner.
Tech Specs
- System Voltage: 43.2V
- Battery Capacity Range: 648Wh
- Max Thrust: 35.5kg
- Minimum Install Weight*: 6.71 kg
- Dimensions with Battery: 540x125x55mm
- Peak Power (Boost): 2150W
- Sustained Power: 1750W
- Peak Horsepower: 2.88hp
- Sustained Horsepower: 2.35hp
- App Compatibility: Foil Drive App, Android and IOS
- Water Rating: IP68 Water and Dust Resistance
- Certified:UN38.3, CE, FCC, WEEE, RoHS, PSE, ICES, IP68
-
*Install weight includes Unit, Battery, Integrated HP Motor, Three Blade Hub and Props, Nosecone (If Applicable) - Retrofit install with mini pod mounted at 20cm increases install weight by 0360g
Details
The Assist MAX+ is the “all-rounder” Foil Drive unit, for riders wanting a powerful foil assist, with minimal compromise on ride feel.
With a unique balance of power, runtime and ride feel the MAX+ does everything well without asking you to give up much of anything and is best for:- Longer surf sessions with higher wave count, in more conditions
- Motor upwind to unlock downwind runs without a shuttle
- Easier and faster Flatwater Take-Offs
- Practice pumping without wasting energy on repeated tow or surf starts
- Chase and ride wake swells from passing boats
- Fast self-recovery between falls for more ride time.
- Extra thrust to unlock smaller boards and foils with more confidence and runtime
- Unlimited progression regardless of the conditions.
- All rider types and abilities under 100 kg using small to mid-length boards
- Advanced riders wanting to prioritize weight saving, without compromise on power
What's included
Foil Drive MAX+ (In Case)
MAX Power 650 Battery
Retro-fit High Power Motor Kit
V3 Controller with Bump Guard Installed
43V Standard Charger 12amp
4x Titanium T40 M7 Split Bolts Silver
Controller Accessories Case
- USB-C Charge Pad and Cable
- Bump Guard Variation
- Wrist Leash
- 1.5mm Allen Key for Bump Guard Removal
Tools and Hardware
1x T40 Driver
1x T30 Driver
1x 2.5mm Black Titanium Driver
1x Pick Tool
2x 15g Battery Grease
2x Nose Cone Rocker Pads
3x M4 10mm Titanium Motor Plug Bolts
1x Anode Replacement Kit
1x Replacement Electronics Box O-Ring (Blue)
1x Replacement Motor Cable O-Ring (Blue)
1x Replacement Motor Cable O-Ring (Red)
1x Microfibre Towel
Other
2x Mast Foam Tracks Guides
1x Tool Caddy (Inside MAX+)
1x Sticker Pack
User ManualsCompatible with
Important: Existing Assist MAX batteries are not compatible with this system.
FM+ 430 Battery (Coming Soon)
FM+ 650 Battery
43V Foil Drive Charger
FM+ Batteries are also compatible with Foil Drive Fusion (requires FM+ Battery Adapter)
Retrofit High Power Motor Kit
Integrated Mast High Power Motor
Retrofit Standard Motor Kit
V2 Controller
V3 Controller
